Portals: Persistent, Editable 4D Spatial World Models on Edge Devices

Abstract

We present Portals, a deployed systems architecture that bridges 4D world-model research and persistent spatial experiences on phones, smart glasses, and augmented-reality headsets. The defining shift in spatial computing is not from 3D to 4D, but from stateless scenes to stateful worlds—scenes that persist, compound, and stay editable across sessions, devices, and users. Delivering such worlds on constrained hardware is the central systems problem: they must render in real time, survive revisits, and remain authorable through voice, gesture, and no-code tools. Built on 3D Gaussian Splatting and informed by 4D-GS and Generalizable Human Gaussians, Portals has been deployed on iOS, with web-based viewers (including Apple Vision Pro) for reconstructed environments, volumetric humans, and holographic spatial media. We contribute: (1) an edge-device runtime built around LOD-adaptive Gaussian splatting (SPAG) and a shared spatial-media compute substrate that fuses depth, stencil, audio, and ML-pose channels, driving 360+ source-agnostic VFX effects at 60 fps on iPhone 14 Pro (2.7–4.1× speedup); (2) a persistent geospatial scene-state architecture with layered world metadata, reloadable scene payloads, and anchor-guided re-alignment across sessions; (3) a creator-facing composition pipeline that bridges reconstruction and generation through VFX composition, voice-driven semantic actions (with on-device intent parsing and cloud fallback for ambiguous utterances), and no-code authoring; and (4) benchmark axes for evaluating 4D world models under deployment constraints such as mobile rendering efficiency, persistent scenes, and editable world state. Prior clinical deployment of volumetric AR at Memorial Sloan Kettering established the real-time rendering primitives underlying this work.

BibTeX

@inproceedings{portals2026,
  title={Portals: Persistent, Editable 4D Spatial World Models on Edge Devices},
  author={Tunick, James A. and Brant, Ryan and Pennock, Jacob D. and Kasowski, Justin},
  booktitle={CVPR 2026 Workshop on 4D World Models: Bridging Generation and Reconstruction},
  year={2026}
}

Visual Highlights

Real-time volumetric performance capture with generative fire and sparkle VFX on live performers — Real-time volumetric performance capture — live performers driving generative fire, sparkle, and light VFX on device.

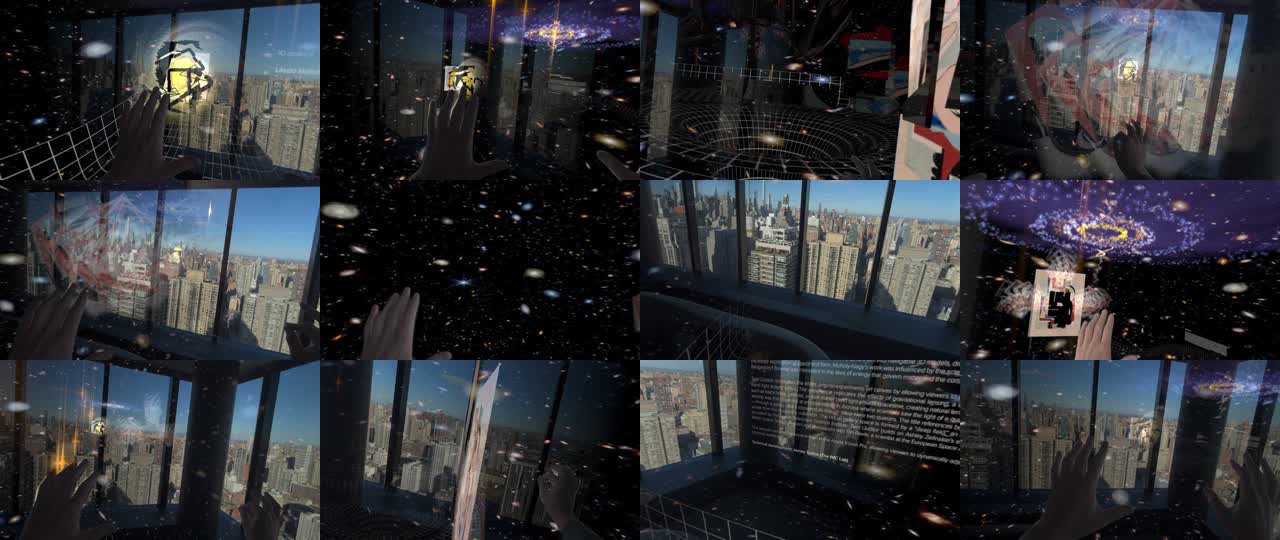

Portals deployments across mobile and immersive hardware — Representative deployment surfaces spanning mobile AR, spatial capture, and immersive display.

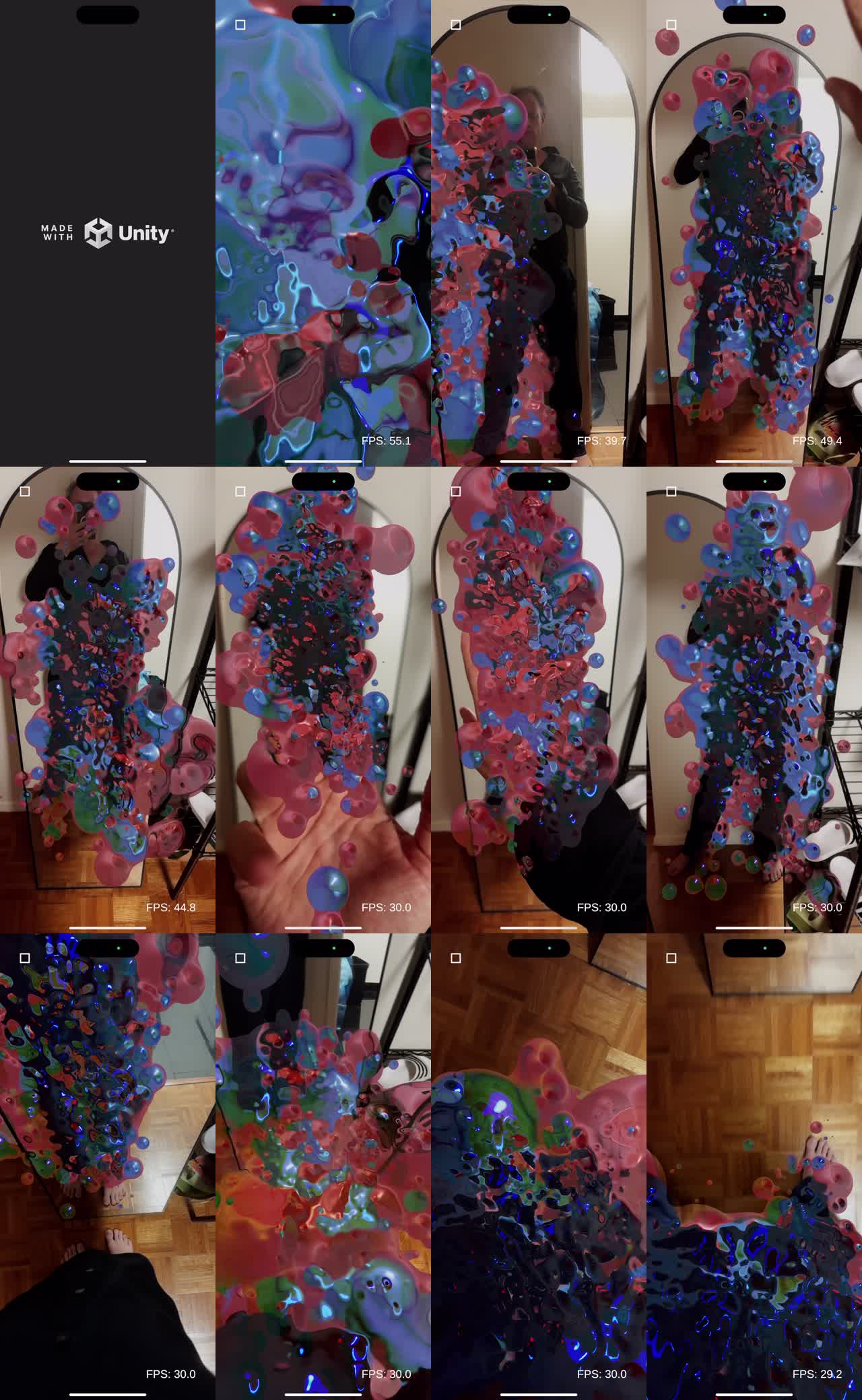

Portals AI-assisted spatial authoring workflow — AI-assisted spatial composition and scene control inside the shipped creator workflow.

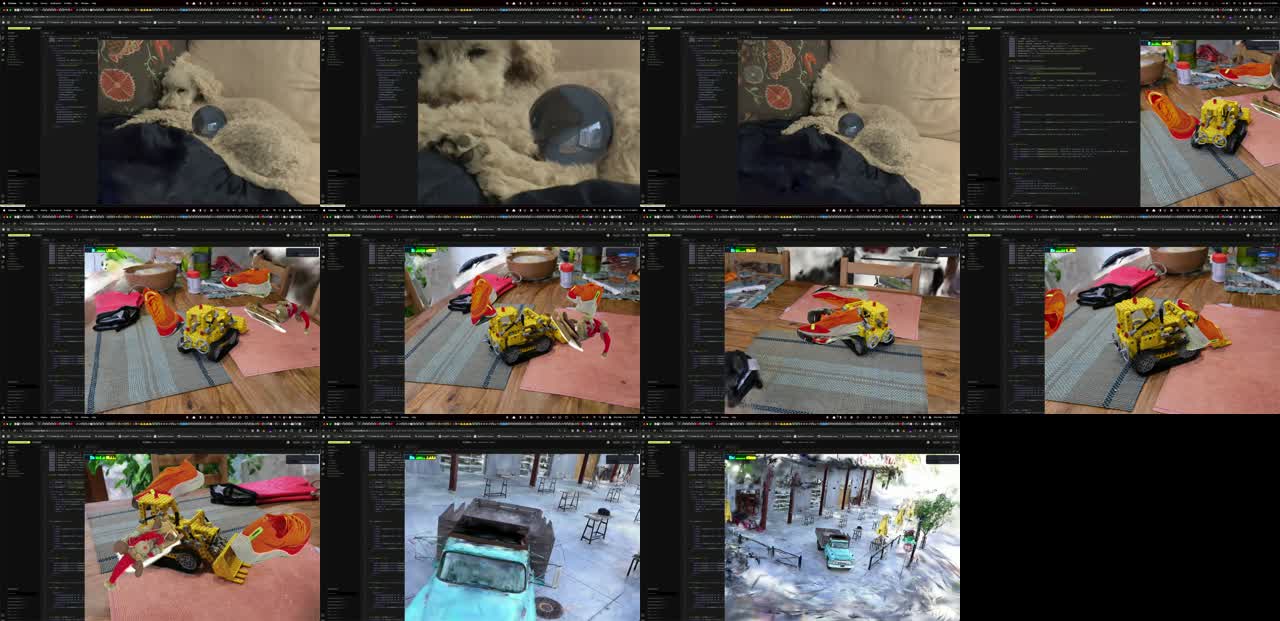

Browser-based splat and web delivery view from Portals — Browser-facing WebGL and WebGPU delivery path for persistent spatial media on the web.

Device Captures

All imagery captured on physical devices — iPhone 14 Pro, iPad Pro, and Apple Vision Pro.

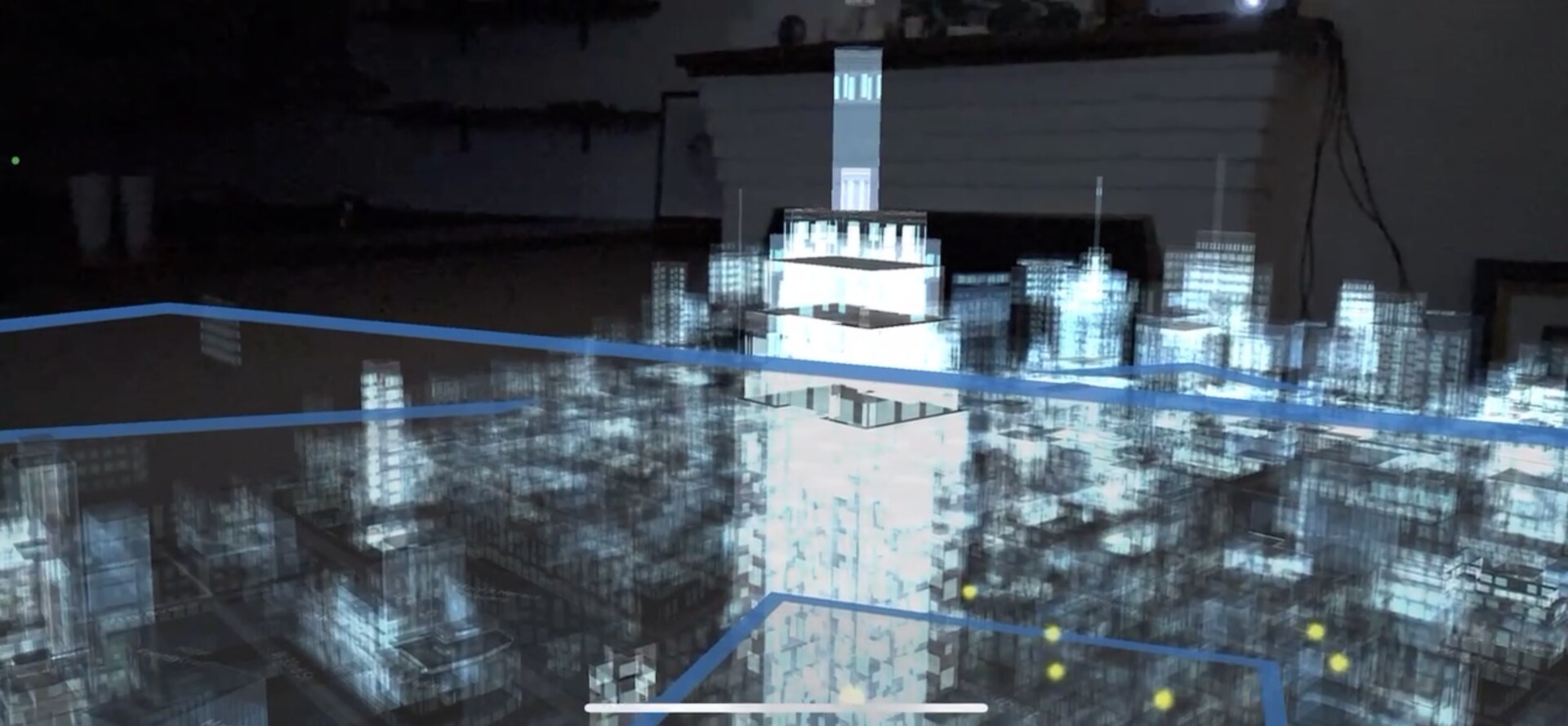

City of holograms — a generative holographic city anchored in real space, captured live on iPhone — City of holograms — a generative holographic city anchored in real space, captured live on device.

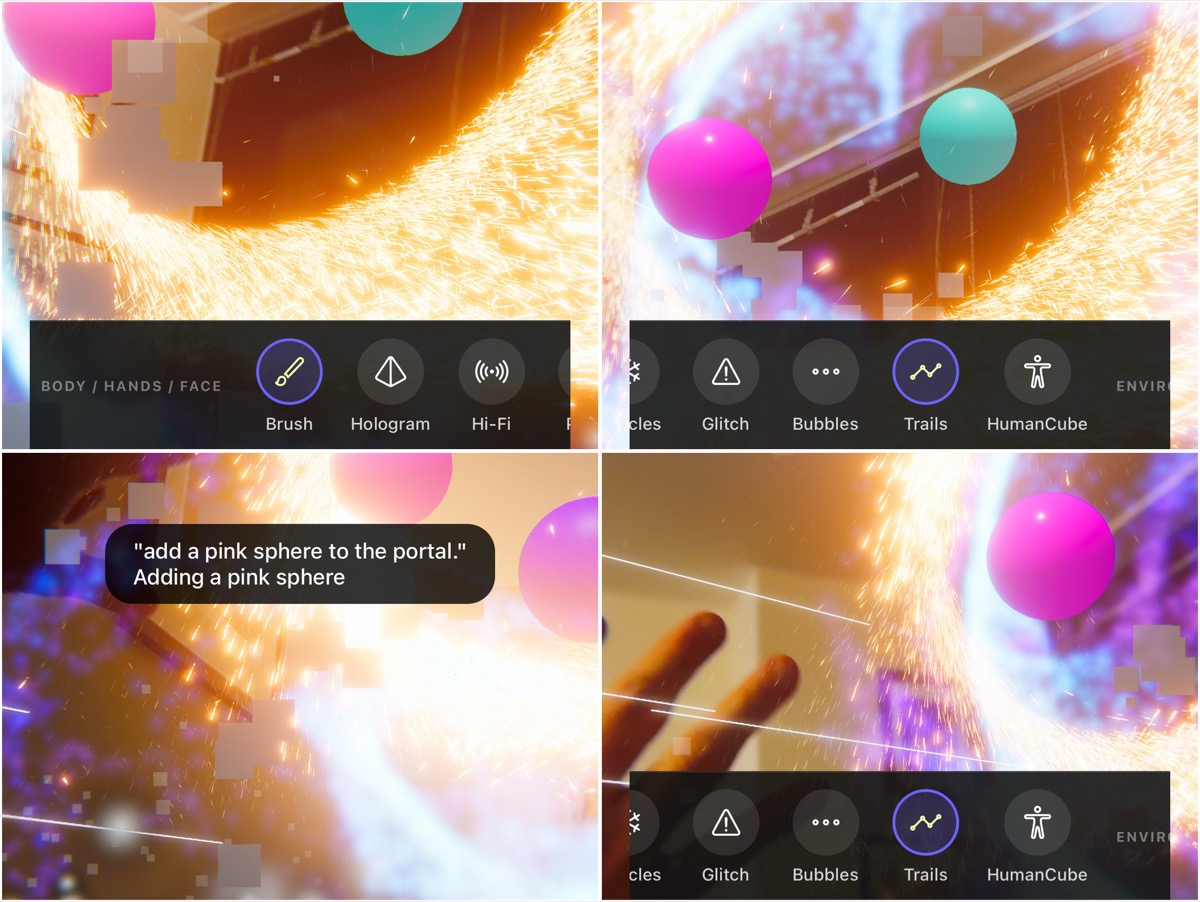

Voice composer with AR VFX and voice command overlay — Voice-driven AR composer with real-time VFX. Voice command "add a pink sphere" parsed locally in <1ms.

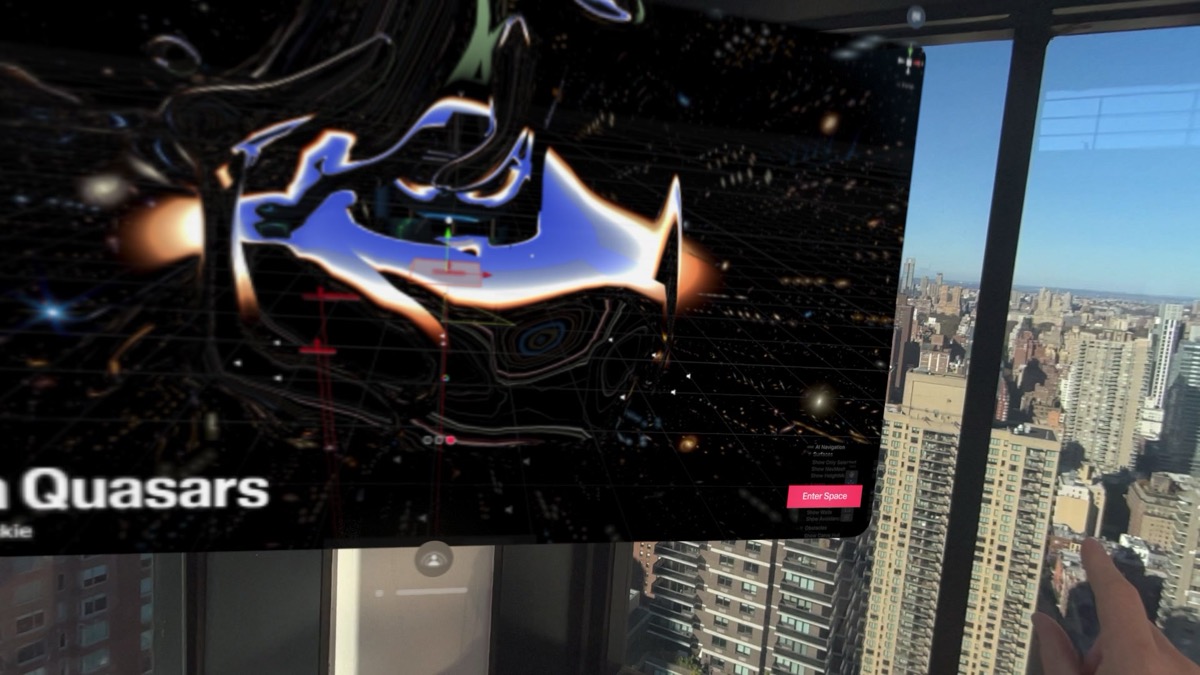

Apple Vision Pro running Portals at IMC with NYC skyline — Apple Vision Pro rendering interactive 3D worlds with passthrough at The IMC Lab, NYC.

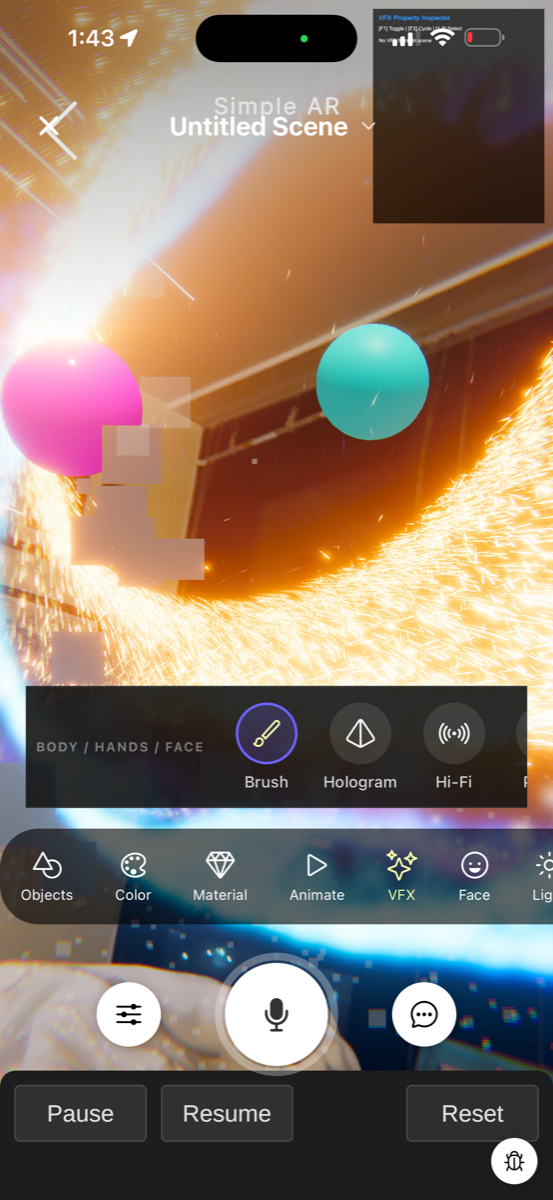

Portals mobile composer UI — Full AR authoring UI on iPhone 15 Pro with voice input, VFX palette, and scene manipulation.

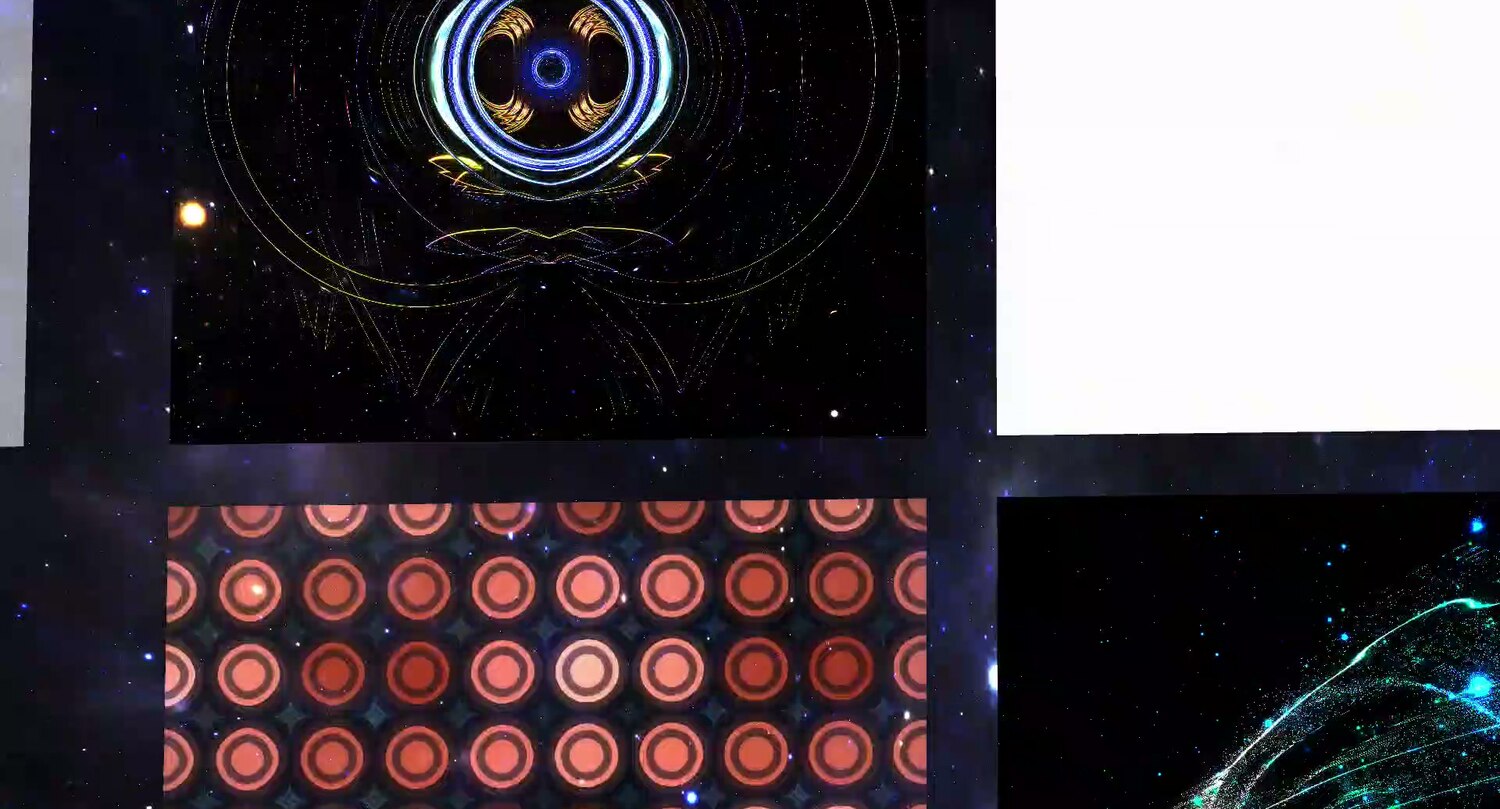

On-device compute-shader library: dozens of galaxy, particle, fractal, cellular-automata and fluid simulations — Compute shaders on-device — galaxy simulations, particle systems, cellular automata, and anatomical models, shown across the full effect library.

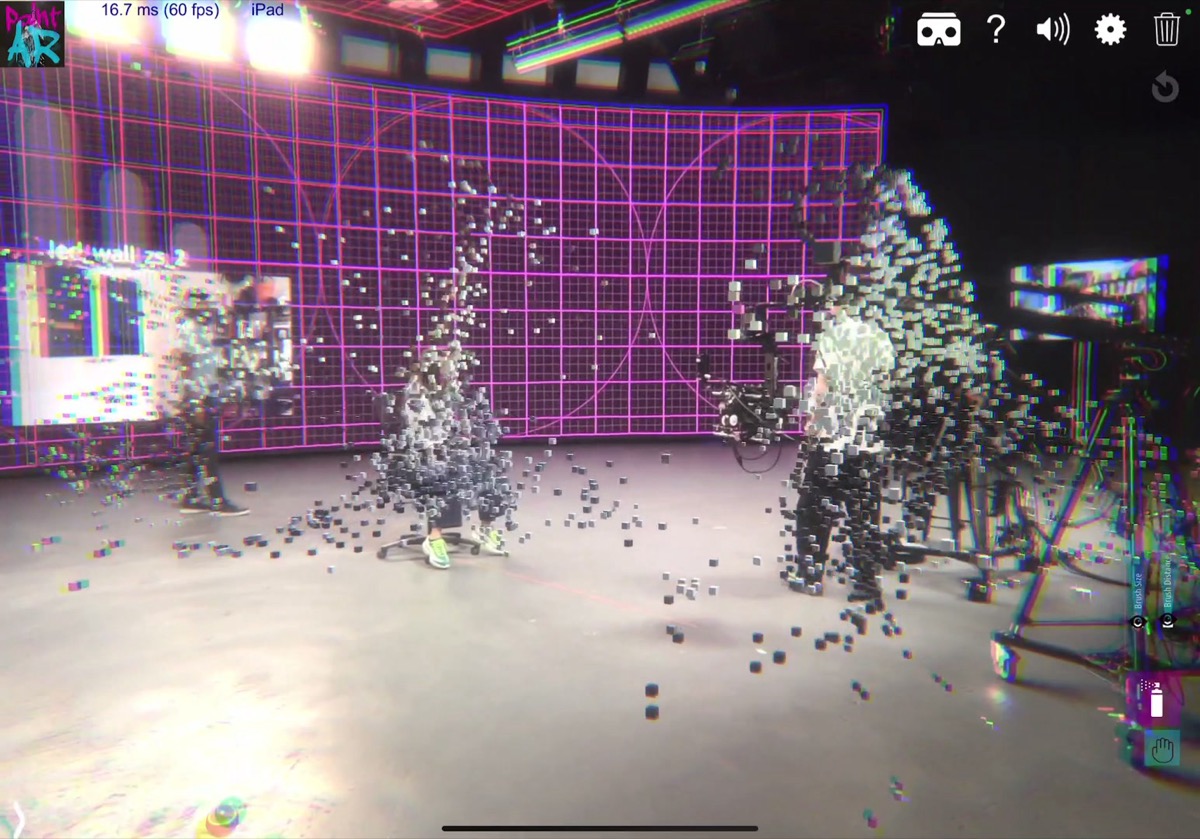

iPad running real-time voxelized body tracking on XR LED stage — iPad at 60fps with voxelized body tracking on an LED wall XR production stage.

Hologram mode with procedural environment VFX and real-time voice parametric control.

Real-time neural style transfer applied to volumetric avatar capture.

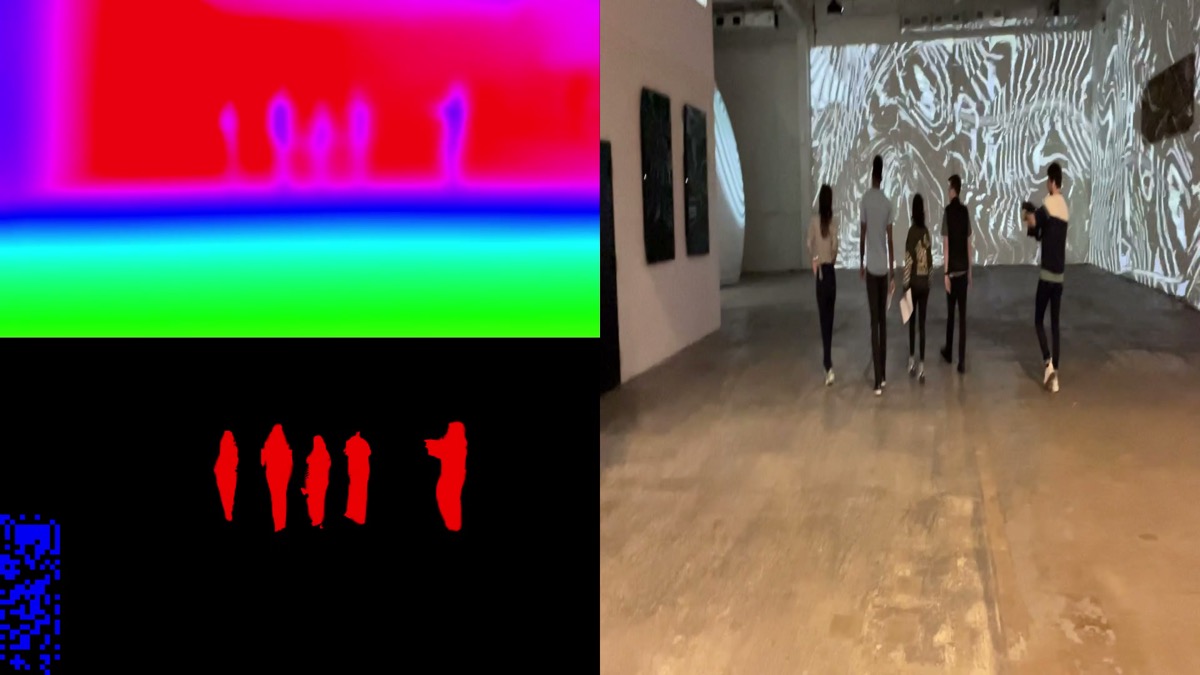

Depth-to-VFX pipeline in gallery installation — Sparse depth maps driving interactive projections in a gallery installation.

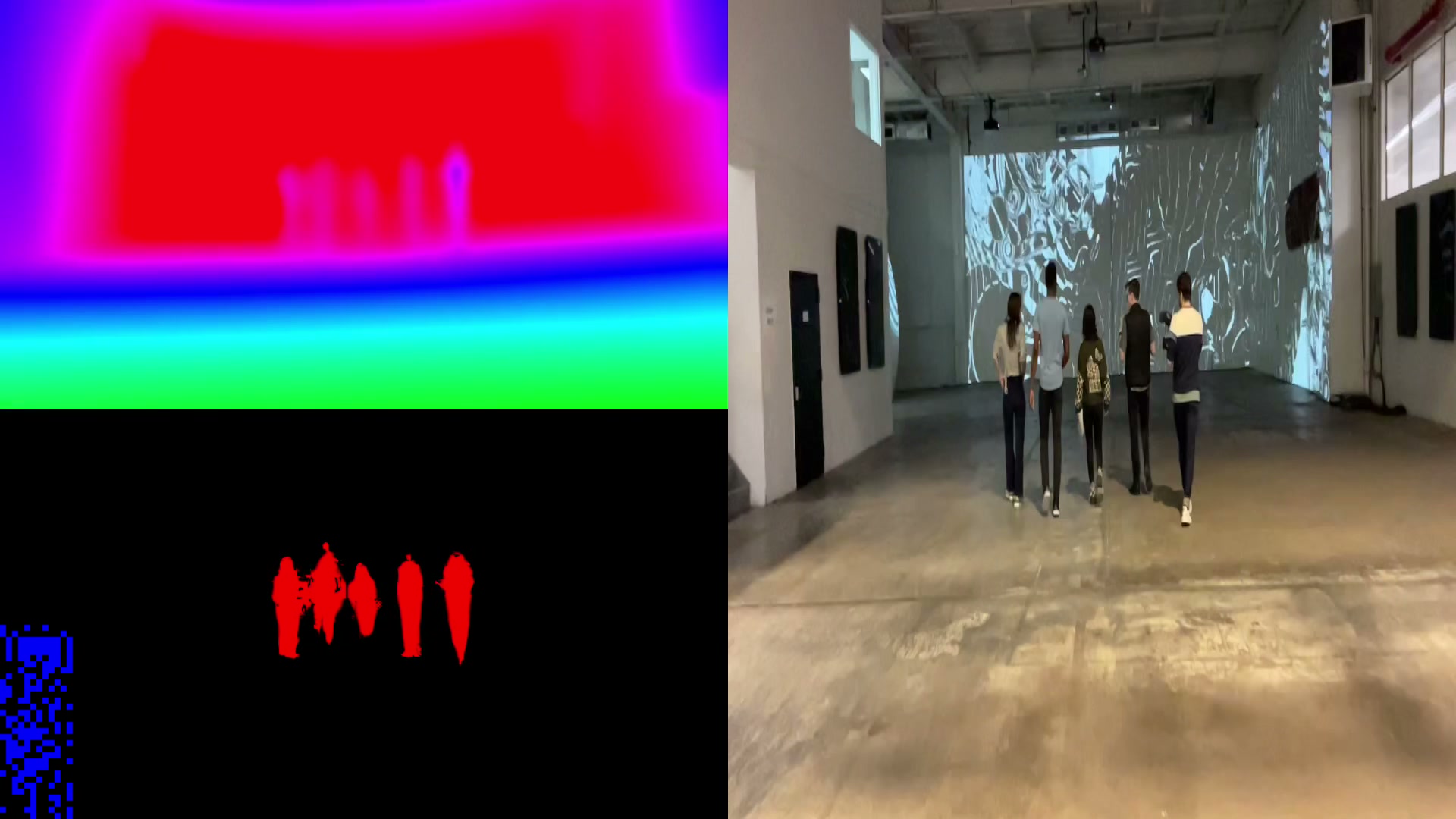

Metavido multi-channel encoding: depth, human stencil, and metadata alongside RGB — Shared spatial-media substrate — a single capture fused into ML depth, human-segmentation stencil, and pose/metadata channels driving downstream VFX.

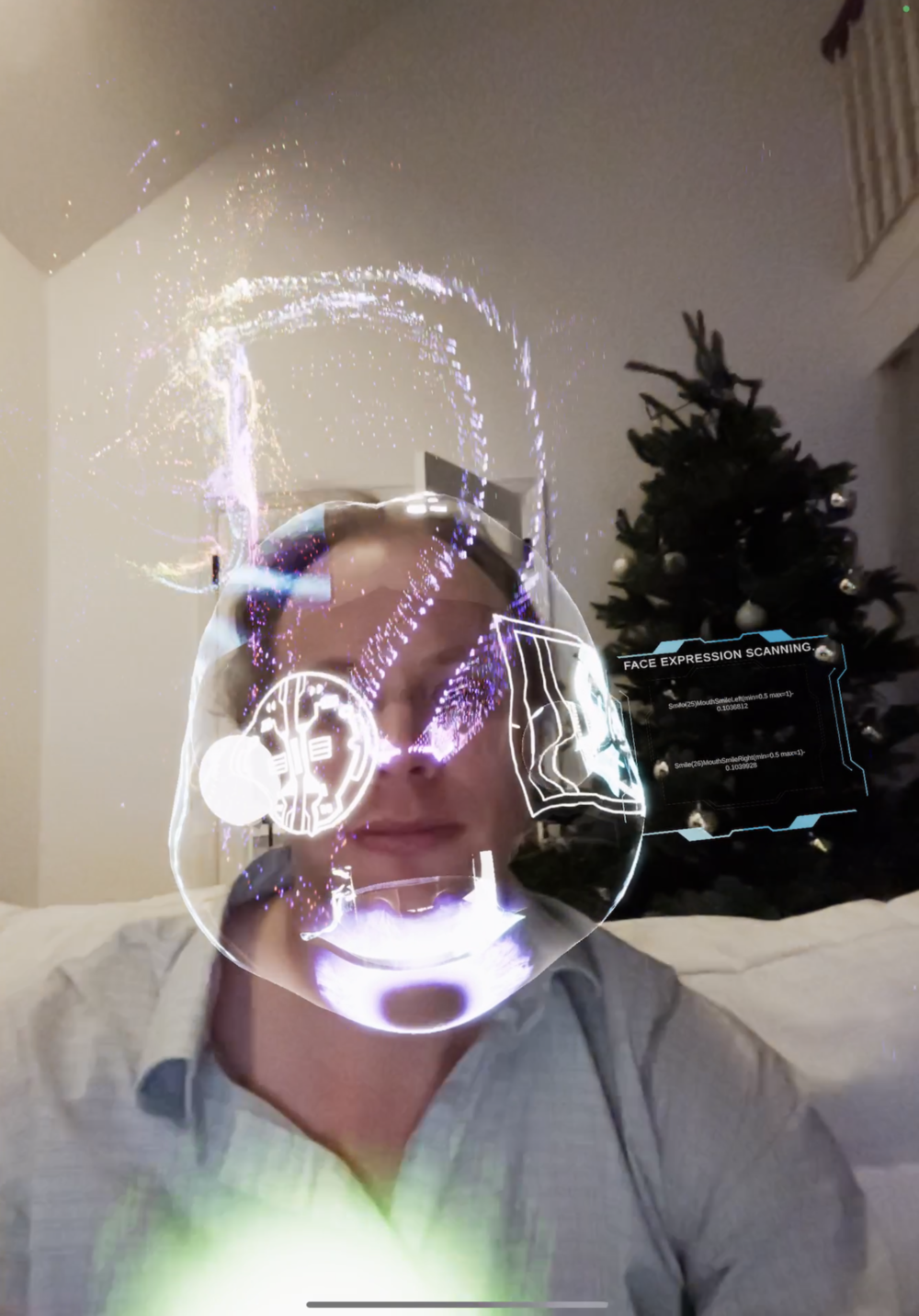

On-device face-mesh scanning reading ARKit blendshape coefficients — Real-time face-mesh scanning — the on-device ML expression channel reading live ARKit blendshape coefficients.

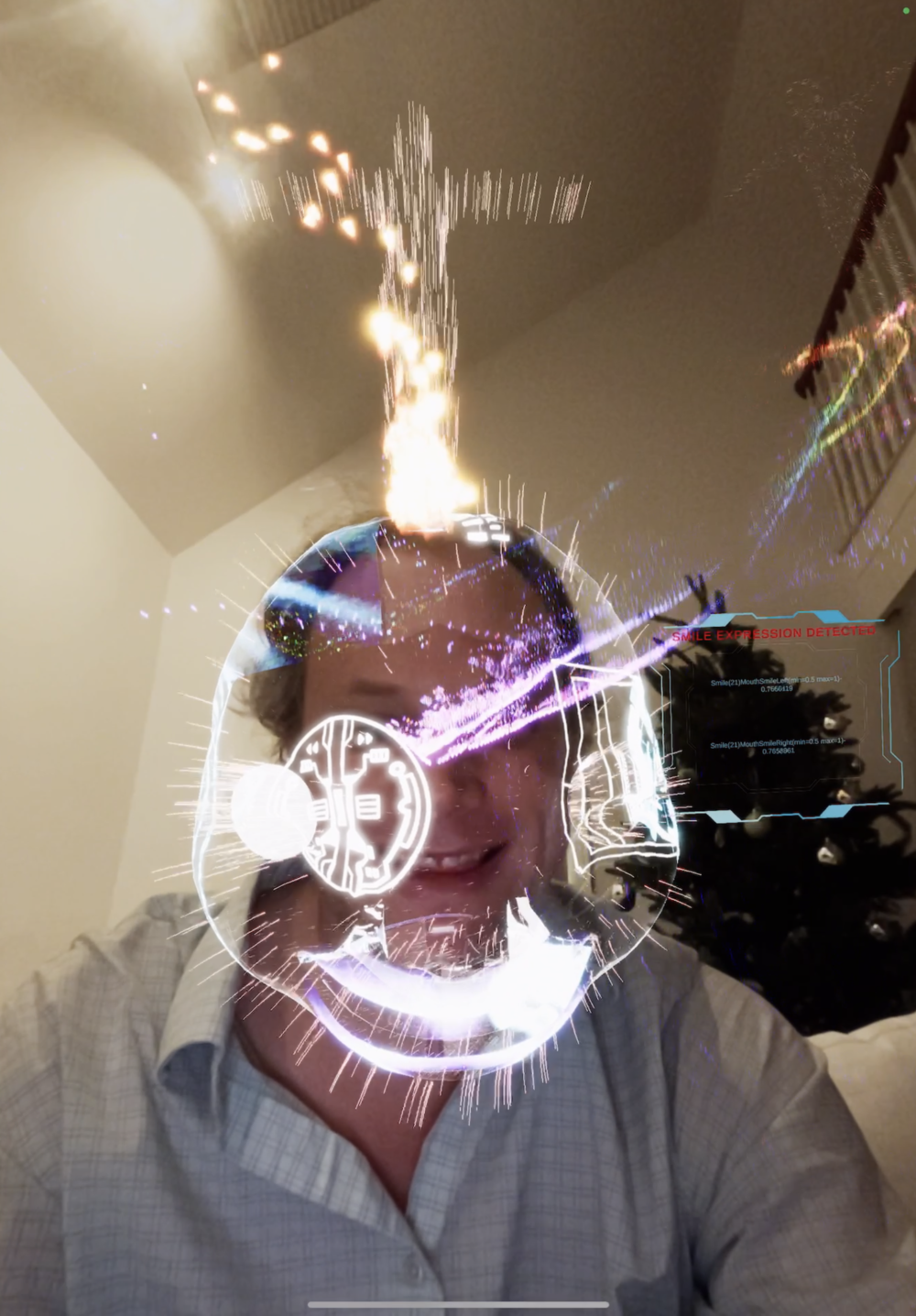

ML facial-expression channel detecting a smile at 0.76 confidence — Contextual affect awareness — the same ML channel flags a detected smile (confidence 0.76), driving expression-reactive effects.

Holographic city with geolocated routes and scene anchors — Persistent geospatial world-state — GPS/ARKit-anchored scenes with routes and pins re-aligned across sessions.

Paper Figures

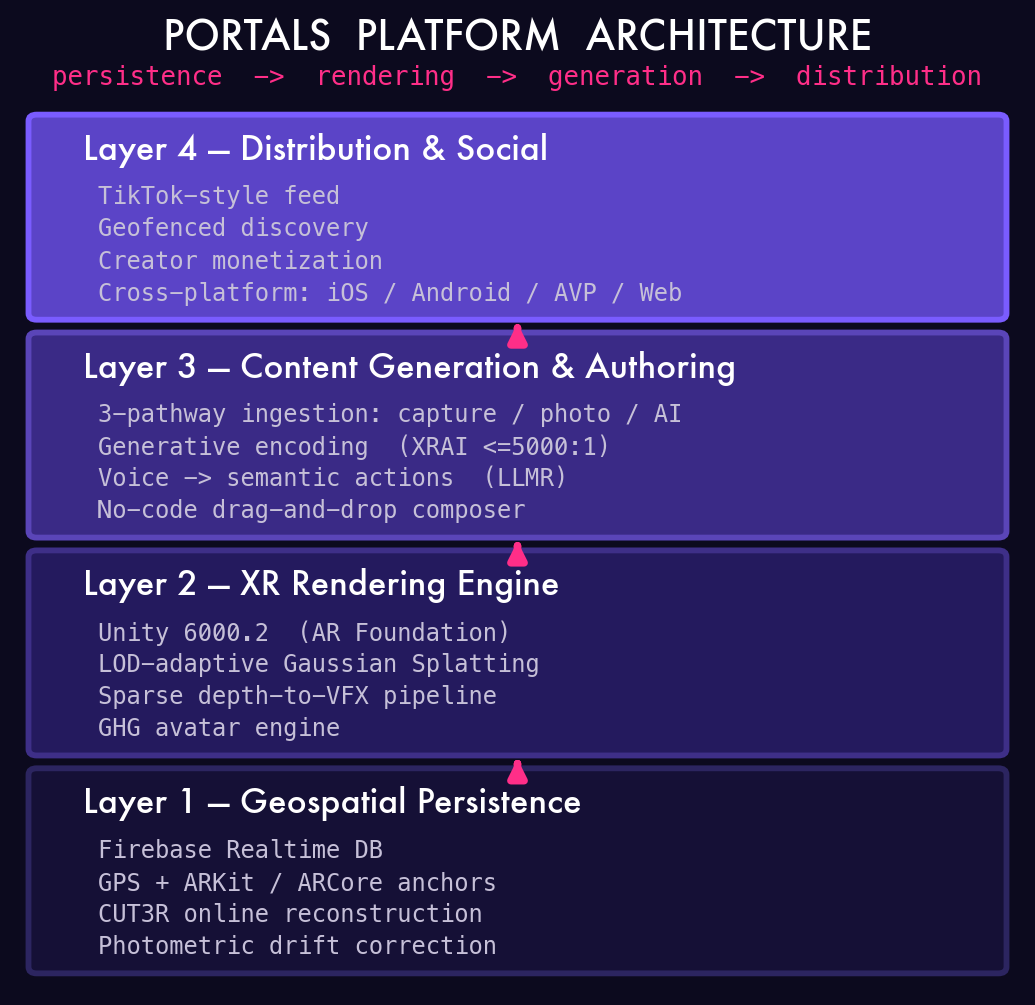

Portals system architecture figure from the paper

System architecture showing the persistent world stack, shared spatial-media substrate, and deployment surfaces across mobile, headset, and web clients.

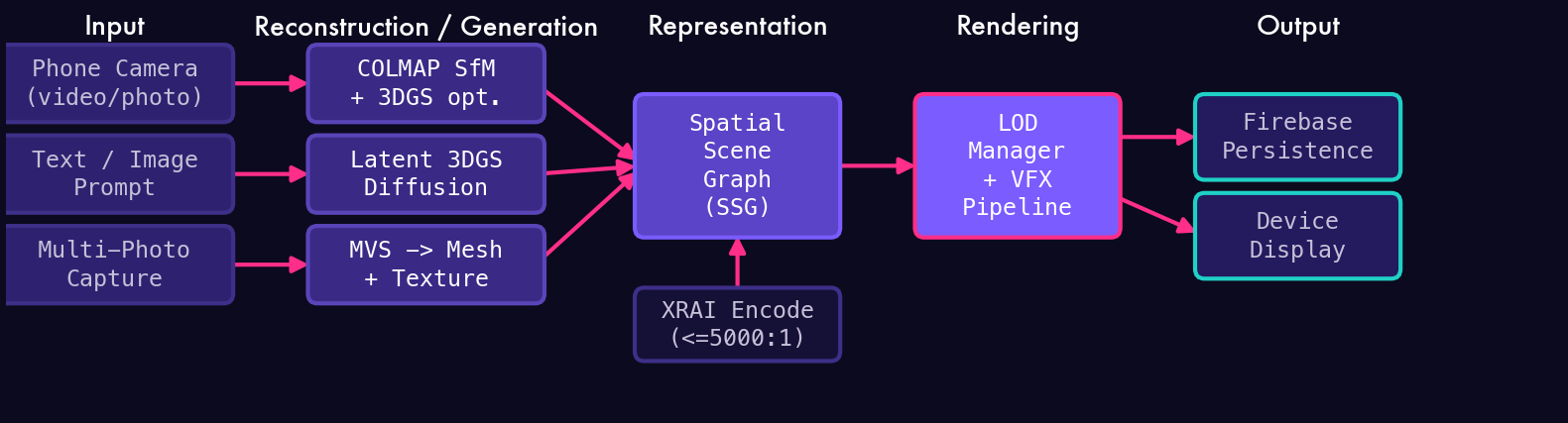

Content pipeline across capture, reconstruction, editing, and deployment. In the shipped system, asset ingestion centers on phone capture, photogrammetry, and text or reference-image generation, while voice, direct manipulation, and no-code controls act as authoring surfaces over the same persistent scene graph.

Portals model and representation diagrams from the paper

Model and representation diagrams summarizing how environments, volumetric humans, and spatial media fit into the same editable 4D world framework.

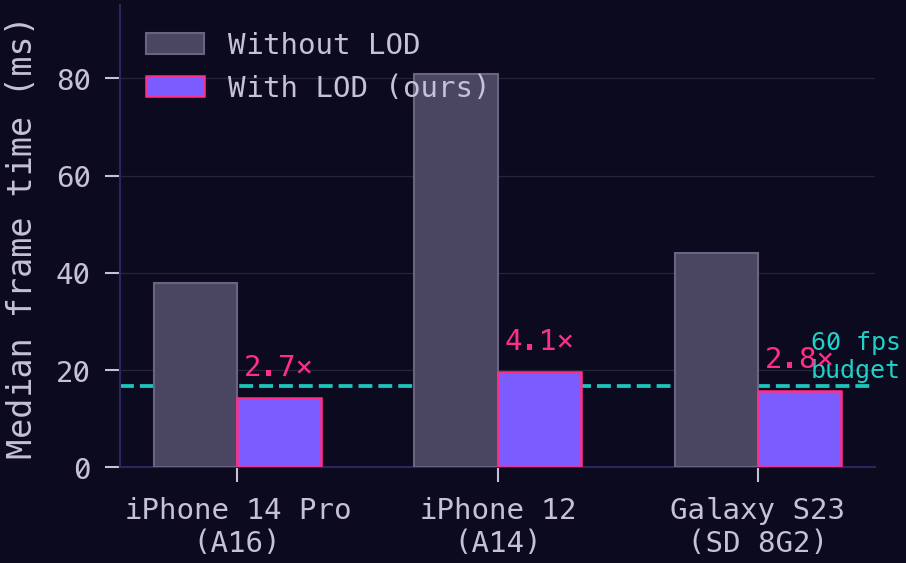

Portals level-of-detail and performance figure from the paper

Level-of-detail and performance figure highlighting mobile-first runtime constraints and the efficiency tradeoffs required for edge deployment.

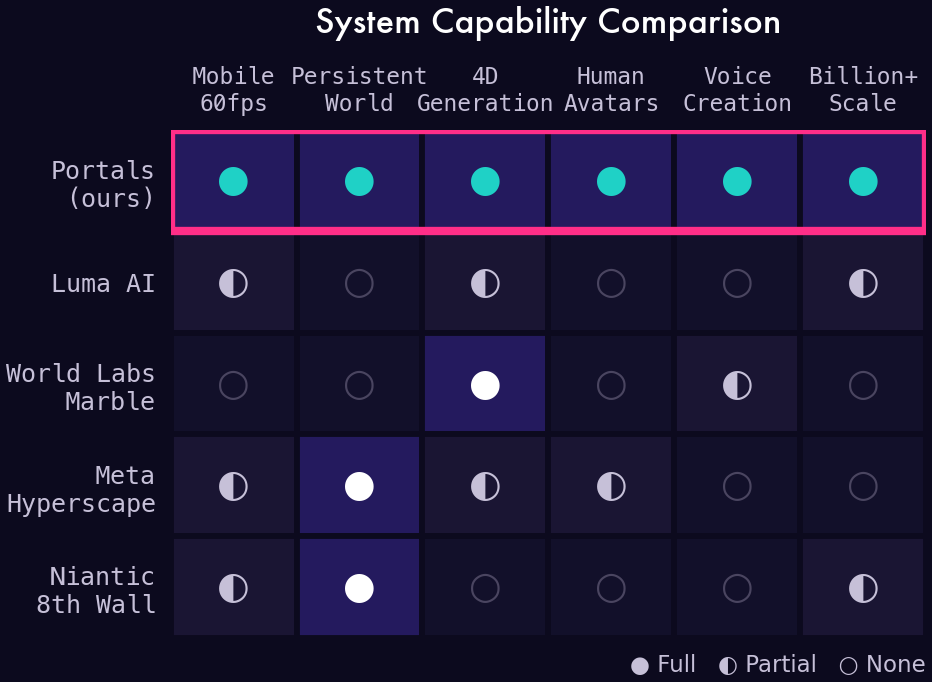

Systems comparison figure from the paper

Comparison of Portals against prior systems along persistence, editability, and deployment-relevant world-model axes.

Supplemental Materials

Extended capability context on the deployed Portals / XRAI platform — the data-driven, ML/AI, and HCI dimensions the system embodies, beyond the camera-ready paper.

Perception & Contextual Awareness

what the system sees, measures, and anticipates — on device

🌀 Each capability stands on its own. Combined, they form the intelligent substrate — contextual awareness greater than the sum of its parts that learns, self-corrects, and improves with every use.perceive → understand → act → learn ↻

🗺️ Scene & spatial understanding

Capability	Most-valuable use case	Mobile / Headset	Web
📏Metric depth sensing	True-scale placement & measurement	🟢	🟡
✂️People occlusion & matting	People walk in front of portals; clean cutouts	🟢	🟡
🏷️Scene mesh + semantic labeling	Content reacts to floors, walls, objects	🟢	🟡
🟦Surface / plane detection	Snap & anchor content to real surfaces	🟢	🟡
🏠Room-layout understanding	Instant scene scaffolds from a room scan	🟡	🟡
🪟Glass / window de-occlusion	Portals stay visible through glass	🟡	🟡
📍World-locked geo-anchoring	City-scale, GPS-locked persistent portals	🟢	🟡
🔎Object & image recognition	Marker & product-triggered experiences	🟢	🟢
🔤Text, code & saliency reading	Read signage; attention-aware overlays	🟢	🟡

🧠 Contextual awareness & prediction 🔒 capability level

Capability	Most-valuable use case	Mobile / Headset	Web
🧭User-intent inference	The right tool surfaces before you ask	🟢	🟢
🔮Needs prediction & anticipation	Anticipates your next step	🟡	🟢
📊Behavior modeling	Personalizes to how you move & create	🟡	🟡
😊Affect & expression sensing	Empathetic response to mood & expression	🟢	🟢
📈Trajectory prediction	Predicts where the ball or person is heading	🟡	🟡
🕸️Relationship mapping	Maps how people, objects & spaces relate to each other	🟡	🟢

🤖 Multimodal intelligence — Jarvis loop 🔒 capability level

Capability	Most-valuable use case	Mobile / Headset	Web
🗣️Voice + vision understanding	Ask about what you're looking at, hands-free	🟢	🟢
👉Open-vocabulary “point & ask”	Point at anything, get an answer or action	🟡	🟢
☝️Raycast pointing — near & far selection	Point a finger to select & act on objects at any distance	🟢	🟡
🔁Perceive → understand → act loop	Sees, understands, and acts in one loop	🟡	🟢

🏃 Motion, body & trajectory

Capability	Most-valuable use case	Mobile / Headset	Web
🎯Trajectory & projectile detection	Ball-flight & shot tracing from a phone — no radar	🟡	🟡
⚡Real-world speed from video	Swing & body speed from a single camera	🟡	🟡
🦴Full-body 3D pose & skeleton	Form & technique coaching; live avatar drive	🟡	🟡
✋Per-body-part keypoints	Fine motion (wrist/club) metrics; gesture control	🟡	🟢
🚶Gait & motion-form analysis	Session-over-session tempo & plane deltas	🟡	🟡
👥Multi-object tracking	People & props tracked for interaction	🟡	🟢

🟢 demonstrated 🟡 in progress 🔒 capability level

Status reflects current maturity per surface. Contextual and agentic capabilities are shown at capability level.

XRAI Platform Capabilities

the interchange format that makes a world portable

🧬 XRAI is the DNA of a Portal — one portable document carries a scene's structure, intent, provenance & edit history and renders on any engine. Store the generation process, not just the output.Portals · XRAI · jARvis

{
  "xrai_version": "1.0",
  "id": "…0001",
  "author": {"type": "human", "id": "example"},
  "origin": {"app": "example", "version": "1.0", "scene": "minimal"},
  "scene": {
    "anchors": [],
    "entities": [
      {"id": "cube_1", "type": "object.primitive",
       "transform": {"position": [0, 0.25, -1.5], "rotation": [0,0,0,1], "scale": [0.2,0.2,0.2]},
       "material": {"color": "cyan", "preset": "neon"}}
    ],
    "relations": [], "events": []
  }
}

📦 File format & interchange

Capability	What it's for	Mobile / Headset	Web
📄Portable scene manifest, geometry out-of-line	Tiny revisit traffic — structure travels, payloads stream on demand	🟢	🟢
💾Persistent + editable world state	Save, re-open, mutate & re-version worlds across sessions, devices & users	🟢	🟢
🧾Edit-history + per-object provenance	Replay creator intent; track source, license, generator, timestamps	🟢	🟡
🧩Multi-asset typed container	One manifest routes primitive / splat / hologram / portal nodes to the right renderer	🟢	🟢
🔀Cross-runtime portability	One `.xrai` decodes on many renderers via an open schema	🟢	🟢
⏳Temporal validity windows	Content that appears only during an event, or on a schedule	🟢	🟡
🧬Generative encoding — "store the rules, not the mesh" 🔒	A compact seed / rules expand into a full world	🟡	🟡

🧊 3D / 4D / nD formats

Format	What it's for	Mobile / Headset	Web
✨Gaussian splats (`.splat` / `.ply` / SPZ)	Photoreal captured environments; web-light delivery	🟢	🟡
📦glTF 2.0 / GLB (runtime baseline)	Universal asset payload every runtime reads	🟢	🟢
🍎USD / USDZ interop	Compose with the Apple / DCC ecosystem	🟢	🟡
🎞️Volumetric video (depth + color) 🔒	Records a hologram into a standard video texture — streams over ordinary codecs	🟢	🟡
🧍Mesh + avatar interchange (FBX ↔ GLB, VRM)	Photogrammetry meshes, humanoid avatars with expressions	🟢	🟢
☁️Point-cloud formats (PLY / E57 / LAS)	Scan data into the same scene graph	🟡	🟡
🔗`KHR_gaussian_splatting` interop	Ride the emerging cross-platform splat standard	🟡	🟡

🕸️ Semantic & ontological

Capability	What it's for	Mobile / Headset	Web
🗂️Spatial Scene Graph (SSG)	Hierarchy of (geometry, geo-anchor, time-window, LOD) — the core representation	🟢	🟡
🔵Entity / relation / event / anchor model	Id-stable entities and relations that survive edits	🟢	🟢
⚡Typed relations with runtime meaning	`reacts-to-audio`, `tracks`, `parent-of` — behavior, not just hierarchy	🟢	🟢
🗣️Natural-language → scene-graph operations	Voice edits and direct manipulation hit the same structured ops	🟢	🟢
🏷️AR scene understanding & semantic labels	Floors, walls, tables, faces, bodies typed with confidence	🟡	🟡
🧭Faceted ontology (multi-axis)	Identity, time, scale, modality, provenance… as first-class axes	🟡	🟡

🧠 Knowledgebase & knowledge graph

Capability	What it's for	Mobile / Headset	Web
🔌Encode-anything → graph	Turn a webpage, repo, paper, or calendar into an XRAI graph	🟢	🟢
🕸️Knowledge graph → spatial world	Nodes become objects/rooms, edges become portals, clusters become districts	🟡	🟡
🌐3D force-graph visualization	Explore relationships as a live, navigable 3D graph	🟡	🟢
🔭Semantic-zoom navigation	One continuous zoom from universe → district → artifact	🟡	🟡
🧷Persistent cross-session memory	Worlds and knowledge compound instead of resetting	🟢	🟡

✨ Generative & procedural

Capability	What it's for	Mobile / Headset	Web
🖼️Text / image → 3D asset	Prompt an object or room-scale asset in seconds	🟢	🟡
📷AI-assisted reconstruction	Publishable splats from a ~20-second phone video	🟢	🟡
🌱Procedural world generation	Voice → procedural environments from seed + rules	🟢	🟡
🎙️Voice / no-code authoring loop	On-device intent parsing (sub-ms) with cloud fallback; every path emits the same ops	🟢	🟢
🎨Whole-scene neural style transfer	"Make everything look like ___" across the live scene	🟡	🟡
🧑‍🎤Avatar generation	Person → avatar / volumetric double	🟡	🟡

🌌 VFX & holograms

Capability	What it's for	Mobile / Headset	Web
🎆360+ source-agnostic real-time VFX	Console-grade effects at 60 fps on a phone	🟢	🟡
🧱Shared compute substrate 🔒	Depth → world / stencil / velocity computed once; each effect adds only render cost	🟢	🟡
🎚️Multi-channel effect binding	Depth + stencil + audio + pose auto-resolved across effect conventions	🟢	🟡
🫧Body-driven / stencil-masked VFX	Sparks, embers, trails that hug a live person	🟢	🟡
🎥Live + recorded holographic media	Record → edit → replay; effects work on live and decoded alike	🟢	🟡
🛰️Live hologram room (browser ↔ iOS)	Share a live hologram across app and browser	🟡	🟡

⚙️ Render pipelines

Capability	What it's for	Mobile / Headset	Web
⚛️LOD-adaptive Gaussian splatting (SPAG)	Panoramic image → editable 3D Gaussians; four-tier LOD (2.7–4.1× speedup)	🟢	🟡
🎛️Adaptive quality controller	Live FPS + thermal tuning holds the 16.7 ms frame budget	🟢	🟡
📱Mobile-first / edge rendering	60 fps iPhone 14 Pro · 57 fps Galaxy S23 — no cloud required	🟢	—
🔺Mesh / PBR pipeline	Standard glTF / URP path for classic assets	🟢	🟢
🌐WebGL / WebGPU web rendering	Graph + scene viewers in the browser	🟡	🟢
🧩Multi-runtime adapters	One document, many engines (Three.js + Unity locked; others in progress)	🟢	🟡

🔬 Splat techniques & pipelines how they rank · ★ our pick

Technique / format	Best at	Mobile	Editable	LOD	Web-light	Our call
3D Gaussian Splatting (3DGS)	Photoreal captured scenes	🟡	🟡	🟡	🟡	baseline
SPAG — Spherical Pixel-Aligned Gaussians	Panorama → editable splats · LOD · O(1) edit	🟢	🟢	🟢	🟡	★ mobile
4D / animated splats (DynGsplat)	Moving / temporal splats	🟡	🟡	🟡	🟡	in test
Human Gaussians (GHG)	Feed-forward volumetric avatars	🟡	🟡	🟡	🟡	roadmap
Latent 3DGS (generative)	Fully-synthetic props from a prompt	🟡	🟡	—	🟡	research
Photogrammetry mesh	Static hero objects	🟢	🟢	🟢	🟢	classic
`.splat` / `.ply`	Universal splat containers	🟢	—	—	🟡	★ interchange
SPZ	~10× smaller splats for the web	🟡	—	—	🟢	★ web
`KHR_gaussian_splatting`	Emerging cross-platform standard	🟡	—	—	🟡	adopt on ratify

Render pipeline — one `.xrai` → many engines	Surface	Status	Rank
Unity gsplat	iOS / mobile	🟢	★ mobile
Three.js	Web (reference)	🟢	★ web
PlayCanvas / SuperSplat	Web	🟡	2
Needle (WebXR)	Web XR	🟡	3
Icosa	Web	🟡	in test
RealityKit	visionOS (native)	🟡	planned
Unreal	PC / console	🟡	planned

📊 Data-viz & X-ray observability

Capability	What it's for	Mobile / Headset	Web
🩻Glanceable system X-ray	Every stage as status · timing · why — see a pipeline before you read it	🟡	🟡
🧾Provenance / lineage per action	Cost, model, and source trace behind every generated thing	🟡	🟡
📈3D data visualization	Large graphs and datasets rendered in WebGPU	🟡	🟢
🔍See-through / see-across transparency	Inspect how a world was built and how its parts relate	🟡	🟡

📱 Devices & platforms

Platform	What runs there	Native	Web
📱iPhone (iOS)	Flagship: 360+ VFX @ 60 fps, full runtime, voice + gesture authoring	🟢	🟡
🤖Android (Galaxy S23)	Render-verified at 57 fps	🟢	🟡
🥽Apple Vision Pro	Web viewer for environments, volumetric humans & holographic media	🟡	🟢
🌐Web / browser	Encode / decode, graph viewer + editor, voice → scene	—	🟢
👓AR headsets / smart glasses	Target surface; glasses-HUD experiences designed	🟡	🟡
🧠Edge devices (no-cloud)	Stateful worlds that live on the device — the runtime, not a thin client	🟢	🟡
🎬LED / XR production stage	Proven in live-event & virtual-production deployments	🟢	—

📎 Grounded examples real shipped fixtures / deployments unless noted

💾 Persistent world + temporal window — a geolocated Portal that reloads across sessions & devices via worldmap relocalization; e.g. a Portal visible only during a concert (temporal window — illustrative).
🕸️ Knowledgebase + graph — a real Wikipedia article encoded → walkable node/relation graph; the site renders the XRAI spec as its own hypergraph.
🌱 Generative / procedural — "a mystical forest with floating lights" → sparse seed 424242 expands to a procedural canopy + 120 drifting particle lights + volumetric fog on the floor plane.
🌌 VFX / holograms — body-stencil VFX on a live person (ARKit occlusion → VFX Graph); a shared live hologram room over RGB+D + LiveKit (in progress).
⚛️ Render / splat — a panorama → Spherical Pixel-Aligned Gaussians, O(1) per-splat edit, four-tier LOD → 360+ VFX at 60 fps on iPhone 14 Pro.
📱 Devices — deployed iPhone 14 Pro (60 fps) · iPhone 12 (48 fps) · Galaxy S23 (57 fps) · web viewer on Apple Vision Pro · prior clinical volumetric AR on Magic Leap 1.

🟢 shipped / demonstrated 🟡 in progress 🔒 capability level ★ our pick

One portable format, every renderer. Statuses are conservative — Web means the encode/decode + viewer surface, not the full mobile VFX stack. 🔒 items are shown at capability level only.

Share this paper

Scan the code to open on mobile, or share the link.

X LinkedIn Copy link

Status

The paper linked above is the accepted camera-ready submitted to the CVPR 2026 Workshop on 4D World Models (Bridging Generation and Reconstruction), certified by IEEE PDF eXpress on April 10, 2026. The interactive web demo, code release, and expanded project materials will follow after the workshop.
